Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

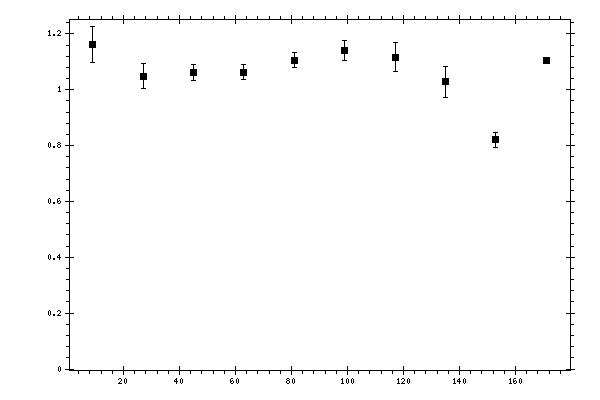

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 1.1626 | 0.065652 | 0.0946991 |
| 27 | 1.04875 | 0.0437749 | 0.07972455 |
| 45 | 1.0606 | 0.028482 | 0.08273951 |
| 63 | 1.06358 | 0.0262332 | 0.07836014 |
| 81 | 1.10538 | 0.0270848 | 0.08182445 |
| 99 | 1.14142 | 0.0357232 | 0.0850593 |
| 117 | 1.11737 | 0.0516048 | 0.12965406 |
| 135 | 1.02819 | 0.0565203 | 0.22035726 |
| 153 | 0.820912 | 0.0260348 | 0.36867555 |
| 171 | 1.10439 | 0.0037656 | 0.61996832 |
