Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

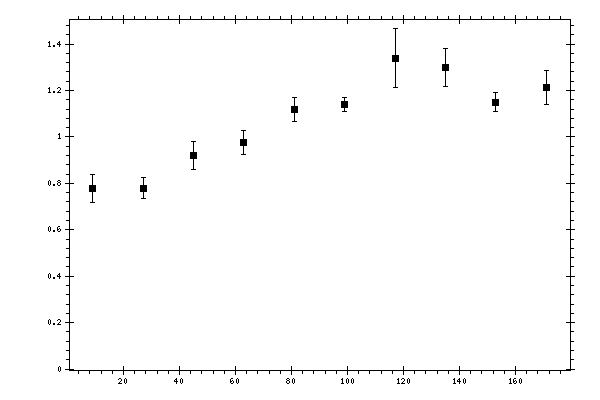

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.77895 | 0.0608354 | 0.16873697 |
| 27 | 0.778884 | 0.0462549 | 0.13712857 |
| 45 | 0.918551 | 0.0598536 | 0.12532665 |
| 63 | 0.97617 | 0.0510228 | 0.12050789 |
| 81 | 1.11887 | 0.0514349 | 0.10022402 |
| 99 | 1.14131 | 0.0300159 | 0.09416454 |
| 117 | 1.33924 | 0.126824 | 0.12094345 |
| 135 | 1.29821 | 0.0832848 | 0.12313466 |
| 153 | 1.14974 | 0.0417956 | 0.09365718 |
| 171 | 1.2121 | 0.072145 | 0.12227804 |
