Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

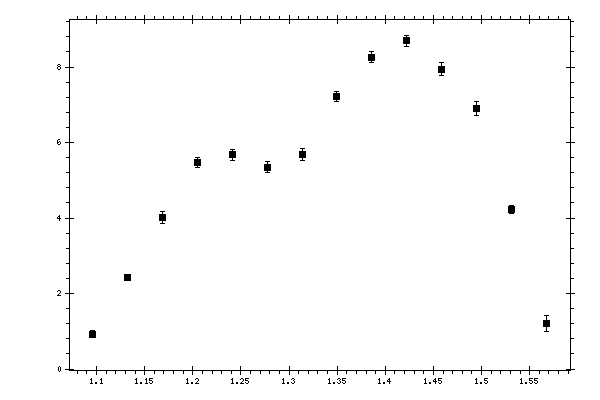

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09597 | 0.924462 | 0.0941571 | 0.0804145 |
| 1.13223 | 2.42153 | 0.0581772 | 0.20339169 |
| 1.16848 | 4.01347 | 0.16721 | 0.29501296 |
| 1.20474 | 5.47096 | 0.143215 | 0.3982311 |
| 1.241 | 5.67775 | 0.147321 | 0.42192435 |
| 1.27725 | 5.3479 | 0.151796 | 0.40039596 |
| 1.31351 | 5.68445 | 0.147513 | 0.54415399 |
| 1.34976 | 7.22755 | 0.130822 | 0.64587868 |
| 1.38602 | 8.26077 | 0.149561 | 0.89891792 |
| 1.42228 | 8.69946 | 0.145741 | 0.92699681 |
| 1.45853 | 7.93902 | 0.171597 | 1.0429408 |
| 1.49479 | 6.91054 | 0.183923 | 0.97504997 |
| 1.53105 | 4.22133 | 0.109795 | 0.80018688 |
| 1.5673 | 1.20718 | 0.205314 | 0.57442254 |
