Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

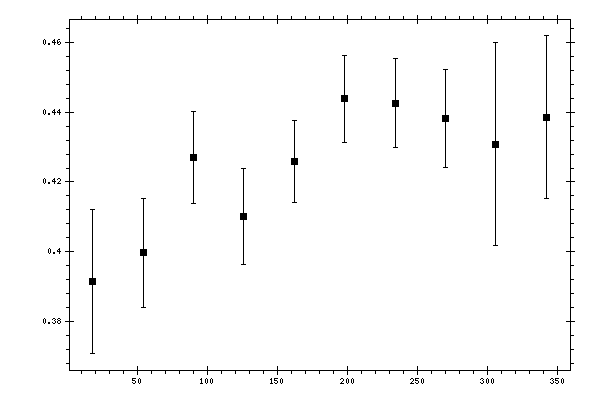

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.391409 | 0.0205639 | 0.0788859 |
| 54 | 0.399653 | 0.0156898 | 0.04453193 |
| 90 | 0.426994 | 0.0131623 | 0.03469834 |
| 126 | 0.410067 | 0.0136633 | 0.03104622 |
| 162 | 0.425965 | 0.0117155 | 0.03201146 |
| 198 | 0.443882 | 0.0125728 | 0.03317022 |
| 234 | 0.442673 | 0.0128029 | 0.03384801 |
| 270 | 0.43814 | 0.014097 | 0.03667886 |
| 306 | 0.430865 | 0.0291467 | 0.05317349 |
| 342 | 0.438586 | 0.0233806 | 0.0775681 |
