Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

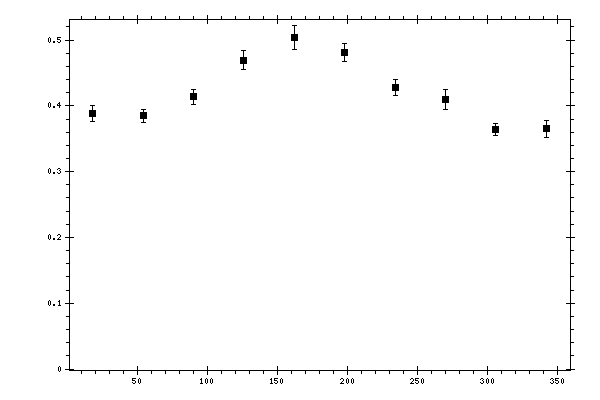

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.387831 | 0.0121908 | 0.04738971 |
| 54 | 0.384653 | 0.00988591 | 0.04442179 |
| 90 | 0.413537 | 0.0114212 | 0.04388613 |
| 126 | 0.469685 | 0.0138562 | 0.04768785 |
| 162 | 0.503817 | 0.0182157 | 0.0530797 |
| 198 | 0.481466 | 0.0134372 | 0.05183091 |
| 234 | 0.427554 | 0.0123012 | 0.04552993 |
| 270 | 0.409951 | 0.0151905 | 0.04454061 |
| 306 | 0.364379 | 0.00930729 | 0.04356945 |
| 342 | 0.365133 | 0.0129061 | 0.0454866 |
