Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|

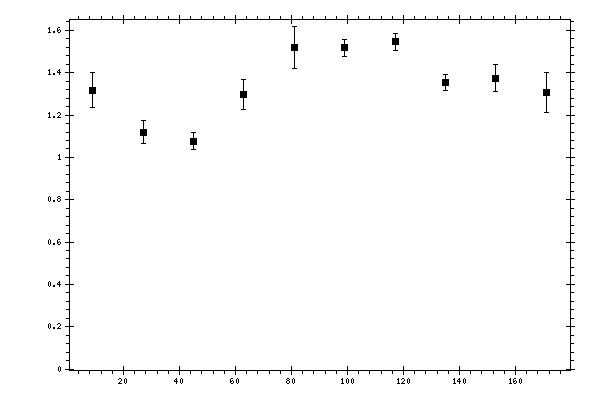

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 1.31815 | 0.0841708 | 0.26024369 |
| 27 | 1.11922 | 0.0559205 | 0.17430859 |
| 45 | 1.07721 | 0.0394651 | 0.15388538 |
| 63 | 1.29623 | 0.0721501 | 0.1577781 |
| 81 | 1.52052 | 0.0996425 | 0.17391659 |
| 99 | 1.51769 | 0.0396557 | 0.12751428 |
| 117 | 1.54639 | 0.0407838 | 0.12675895 |
| 135 | 1.35466 | 0.0364144 | 0.10689179 |
| 153 | 1.37497 | 0.0642092 | 0.12483767 |
| 171 | 1.30577 | 0.0935672 | 0.11958938 |
