Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|

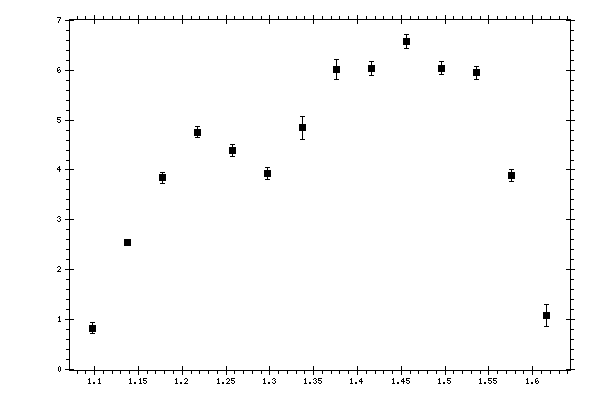

Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09776 | 0.823874 | 0.106591 | 0.06759007 |
| 1.13758 | 2.53477 | 0.0607692 | 0.20149713 |
| 1.17741 | 3.83939 | 0.117116 | 0.2743802 |
| 1.21724 | 4.76343 | 0.105144 | 0.33896276 |
| 1.25707 | 4.38964 | 0.113426 | 0.32654116 |
| 1.29689 | 3.92771 | 0.119911 | 0.29320818 |
| 1.33672 | 4.84556 | 0.223325 | 0.42221098 |
| 1.37655 | 6.02373 | 0.200298 | 0.51156049 |
| 1.41638 | 6.04281 | 0.140515 | 0.55247377 |
| 1.45621 | 6.58033 | 0.134654 | 0.58610298 |
| 1.49603 | 6.04457 | 0.134741 | 0.74140373 |
| 1.53586 | 5.95168 | 0.135789 | 0.7358753 |
| 1.57569 | 3.88526 | 0.117236 | 0.62616061 |
| 1.61552 | 1.0799 | 0.222372 | 0.47386533 |
