Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

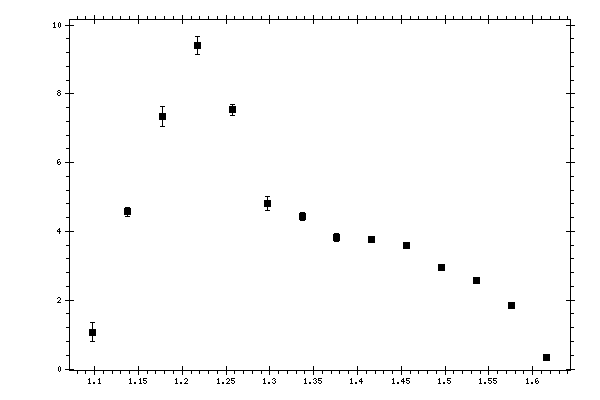

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09776 | 1.06887 | 0.2827 | 0.5003066 |
| 1.13758 | 4.57084 | 0.136707 | 0.6681715 |
| 1.17741 | 7.34504 | 0.300141 | 0.93594822 |
| 1.21724 | 9.40905 | 0.265185 | 1.06184366 |
| 1.25707 | 7.52987 | 0.158164 | 0.64710899 |
| 1.29689 | 4.81523 | 0.197784 | 0.4568718 |
| 1.33672 | 4.43838 | 0.111495 | 0.32319772 |
| 1.37655 | 3.82729 | 0.120066 | 0.2799016 |
| 1.41638 | 3.77638 | 0.0838696 | 0.27073443 |
| 1.45621 | 3.57803 | 0.0861629 | 0.25665208 |
| 1.49603 | 2.96168 | 0.0711462 | 0.21217419 |
| 1.53586 | 2.57383 | 0.0763186 | 0.18471866 |
| 1.57569 | 1.84777 | 0.0357919 | 0.1479422 |
| 1.61552 | 0.327578 | 0.0850062 | 0.02748704 |
