Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|

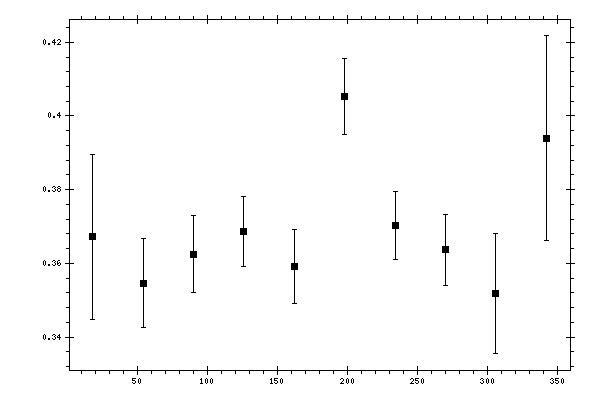

Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.36719 | 0.0223111 | 0.06420675 |
| 54 | 0.354655 | 0.012076 | 0.03740137 |
| 90 | 0.362481 | 0.0104554 | 0.02932232 |
| 126 | 0.36862 | 0.00951296 | 0.02737014 |
| 162 | 0.35924 | 0.0100553 | 0.02713737 |
| 198 | 0.405232 | 0.010268 | 0.0311295 |
| 234 | 0.370265 | 0.00923325 | 0.02781172 |
| 270 | 0.363667 | 0.00958327 | 0.02871919 |
| 306 | 0.351859 | 0.0162177 | 0.03711587 |
| 342 | 0.393922 | 0.027825 | 0.06325521 |
