Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

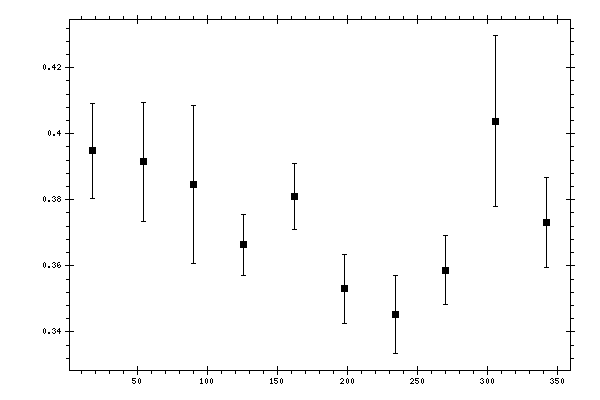

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.394784 | 0.0142436 | 0.06406474 |
| 54 | 0.391509 | 0.018098 | 0.03992122 |
| 90 | 0.384629 | 0.0238957 | 0.03584429 |
| 126 | 0.366329 | 0.00921915 | 0.02779406 |
| 162 | 0.380939 | 0.010067 | 0.02922028 |
| 198 | 0.353037 | 0.0103721 | 0.02725059 |
| 234 | 0.345273 | 0.0117159 | 0.02676643 |
| 270 | 0.358708 | 0.0104685 | 0.0282672 |
| 306 | 0.403854 | 0.0257926 | 0.04707664 |
| 342 | 0.373184 | 0.013562 | 0.06206054 |
