Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|

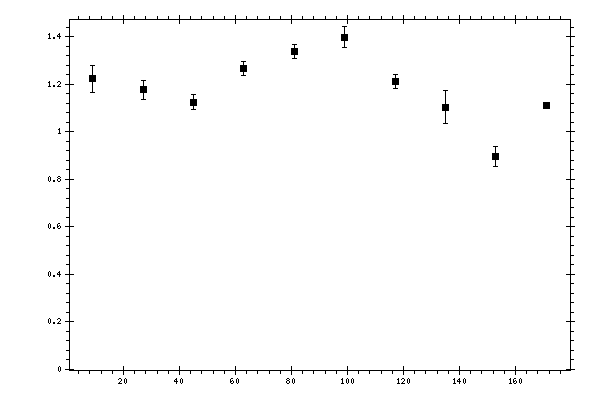

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 1.22346 | 0.0578267 | 0.09625415 |
| 27 | 1.177 | 0.0398366 | 0.09491746 |
| 45 | 1.12513 | 0.0323831 | 0.08685824 |
| 63 | 1.26848 | 0.0289847 | 0.09599991 |
| 81 | 1.33926 | 0.0287339 | 0.09819949 |
| 99 | 1.39943 | 0.0427952 | 0.10384558 |
| 117 | 1.21091 | 0.0302017 | 0.11119853 |
| 135 | 1.1044 | 0.0700129 | 0.18589971 |
| 153 | 0.896871 | 0.0426905 | 0.30782821 |
| 171 | 1.11085 | 0.00328123 | 0.62754788 |
