Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

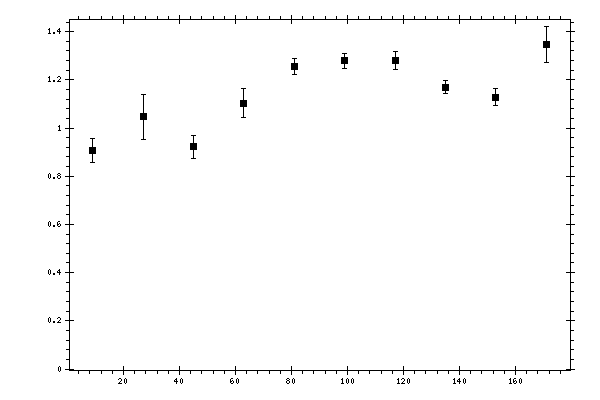

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.906853 | 0.0493713 | 0.16398649 |
| 27 | 1.04732 | 0.093556 | 0.17297029 |
| 45 | 0.921516 | 0.0477132 | 0.12135782 |
| 63 | 1.10332 | 0.0604259 | 0.11767391 |
| 81 | 1.25451 | 0.0334523 | 0.11460837 |
| 99 | 1.27951 | 0.0313493 | 0.11380863 |
| 117 | 1.2804 | 0.0355621 | 0.11023656 |
| 135 | 1.16991 | 0.0282127 | 0.09484803 |
| 153 | 1.12861 | 0.0367437 | 0.08806644 |
| 171 | 1.34712 | 0.0732794 | 0.12265184 |
