Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

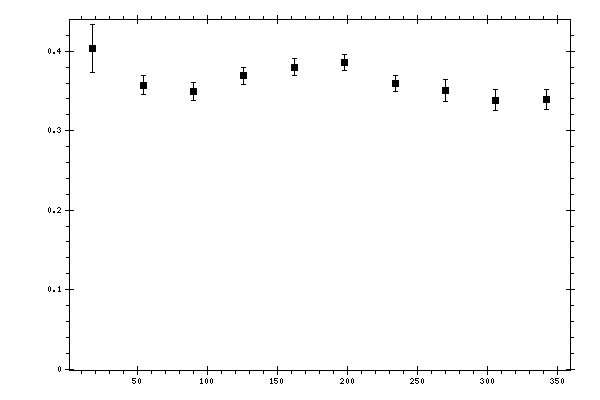

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.403551 | 0.0304354 | 0.06064109 |
| 54 | 0.357539 | 0.0123474 | 0.03694701 |
| 90 | 0.349576 | 0.0109338 | 0.02828931 |
| 126 | 0.368965 | 0.0102291 | 0.02854086 |
| 162 | 0.380142 | 0.0108224 | 0.02961086 |
| 198 | 0.385859 | 0.00987591 | 0.02916716 |
| 234 | 0.359887 | 0.0100079 | 0.02833481 |
| 270 | 0.35018 | 0.0139161 | 0.02938298 |
| 306 | 0.338285 | 0.0130614 | 0.03698561 |
| 342 | 0.339197 | 0.0128518 | 0.05606589 |
