Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

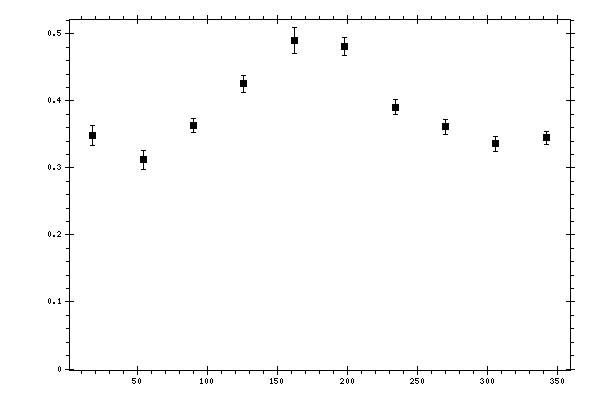

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.348461 | 0.0150146 | 0.03833207 |
| 54 | 0.312331 | 0.0141794 | 0.0355035 |
| 90 | 0.36313 | 0.0104269 | 0.03404594 |
| 126 | 0.425441 | 0.0130918 | 0.03852392 |
| 162 | 0.490693 | 0.0195688 | 0.04072815 |
| 198 | 0.481023 | 0.0132001 | 0.04099604 |
| 234 | 0.390877 | 0.01176 | 0.03546272 |
| 270 | 0.361659 | 0.0112233 | 0.0344161 |
| 306 | 0.335912 | 0.0108184 | 0.0347563 |
| 342 | 0.345457 | 0.00968803 | 0.03767217 |
