Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

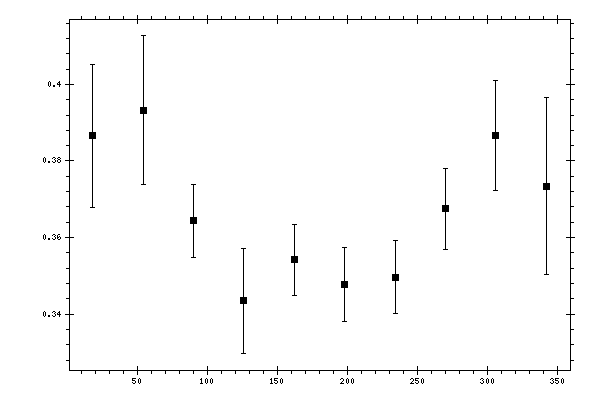

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.386523 | 0.0186893 | 0.05886541 |
| 54 | 0.393293 | 0.0193713 | 0.0395996 |
| 90 | 0.364382 | 0.00959121 | 0.03096446 |
| 126 | 0.343477 | 0.0136547 | 0.02896139 |
| 162 | 0.354154 | 0.00931489 | 0.02777079 |
| 198 | 0.347678 | 0.00970261 | 0.02686246 |
| 234 | 0.349684 | 0.00943346 | 0.02712208 |
| 270 | 0.367538 | 0.0105444 | 0.02916983 |
| 306 | 0.38663 | 0.0143837 | 0.03859021 |
| 342 | 0.373458 | 0.0231455 | 0.05937041 |
