Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

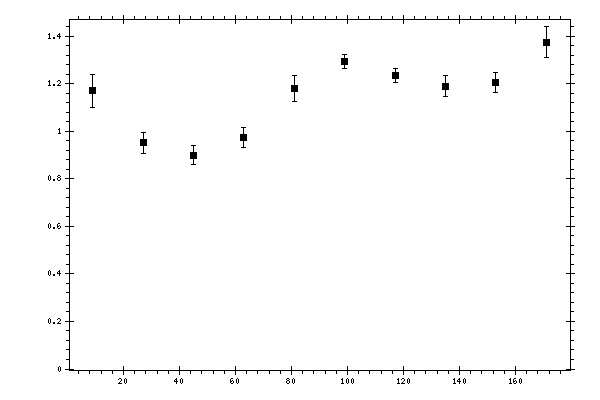

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 1.17049 | 0.0688631 | 0.19892138 |
| 27 | 0.951061 | 0.0449797 | 0.137694 |
| 45 | 0.898983 | 0.0404381 | 0.11023245 |
| 63 | 0.973645 | 0.0405712 | 0.10450604 |
| 81 | 1.17931 | 0.0549664 | 0.1089106 |
| 99 | 1.29447 | 0.0299676 | 0.11459499 |
| 117 | 1.2345 | 0.0303697 | 0.10470672 |
| 135 | 1.18889 | 0.0436009 | 0.1019101 |
| 153 | 1.2053 | 0.0425083 | 0.09665635 |
| 171 | 1.3744 | 0.0641812 | 0.12193575 |
