Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

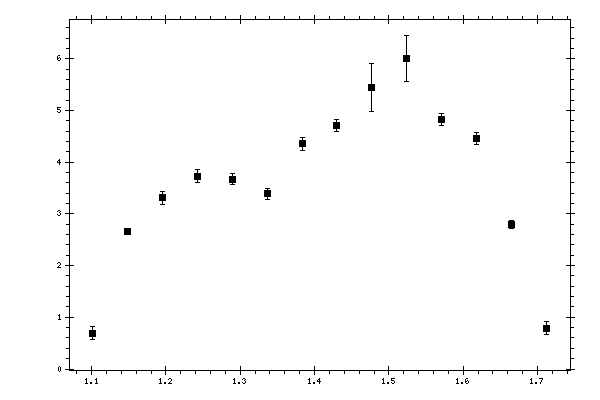

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10133 | 0.695855 | 0.120228 | 0.06264917 |
| 1.1483 | 2.65547 | 0.0615452 | 0.22901738 |
| 1.19527 | 3.31017 | 0.130141 | 0.25024515 |
| 1.24224 | 3.73178 | 0.12257 | 0.28143554 |
| 1.28921 | 3.66825 | 0.104463 | 0.27576116 |
| 1.33618 | 3.38644 | 0.108722 | 0.25489653 |
| 1.38315 | 4.35326 | 0.123109 | 0.32403857 |
| 1.43012 | 4.71381 | 0.118307 | 0.35017698 |
| 1.47709 | 5.43877 | 0.466808 | 0.55664887 |
| 1.52406 | 6.01082 | 0.444039 | 0.60978893 |
| 1.57103 | 4.82667 | 0.115994 | 0.5188585 |
| 1.618 | 4.46051 | 0.120661 | 0.4941877 |
| 1.66497 | 2.79547 | 0.0710293 | 0.44858895 |
| 1.71194 | 0.791662 | 0.133473 | 0.29168518 |
