Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|

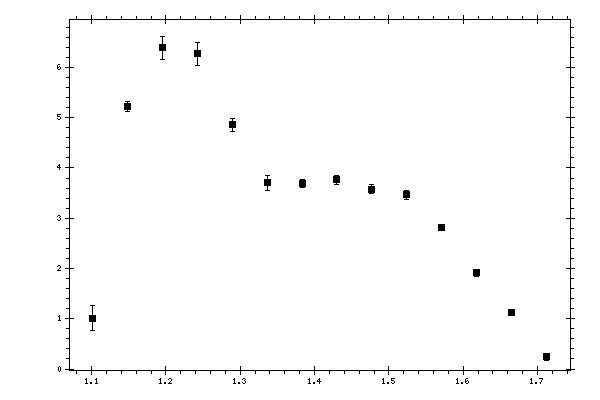

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10133 | 1.01175 | 0.243696 | 0.43767493 |
| 1.1483 | 5.22298 | 0.107257 | 0.69565305 |
| 1.19527 | 6.38973 | 0.231525 | 0.66027891 |
| 1.24224 | 6.26859 | 0.233752 | 0.65219835 |
| 1.28921 | 4.86174 | 0.132091 | 0.40820559 |
| 1.33618 | 3.70424 | 0.151329 | 0.3161066 |
| 1.38315 | 3.69757 | 0.0823616 | 0.3071072 |
| 1.43012 | 3.76103 | 0.0816638 | 0.31235235 |
| 1.47709 | 3.5777 | 0.083297 | 0.25856991 |
| 1.52406 | 3.46444 | 0.0846476 | 0.25039739 |
| 1.57103 | 2.81308 | 0.060442 | 0.21180437 |
| 1.618 | 1.91304 | 0.0732939 | 0.14430783 |
| 1.66497 | 1.13352 | 0.0317761 | 0.10204029 |
| 1.71194 | 0.238849 | 0.0692234 | 0.02249893 |
