Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|

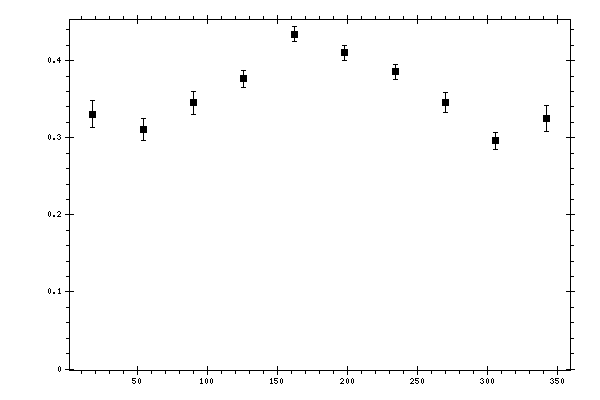

Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.330677 | 0.0179519 | 0.04538807 |
| 54 | 0.310345 | 0.0142781 | 0.03056748 |
| 90 | 0.345353 | 0.0149248 | 0.0294929 |
| 126 | 0.37661 | 0.0111256 | 0.02911695 |
| 162 | 0.434529 | 0.0102785 | 0.03450354 |
| 198 | 0.410391 | 0.00966374 | 0.03167552 |
| 234 | 0.385446 | 0.00992723 | 0.03168931 |
| 270 | 0.345565 | 0.0131064 | 0.02987329 |
| 306 | 0.295961 | 0.0108414 | 0.03078234 |
| 342 | 0.325196 | 0.0172891 | 0.04294426 |
