Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

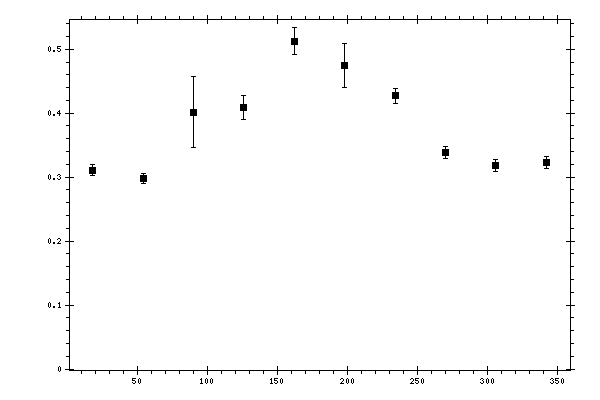

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.310708 | 0.00835004 | 0.03382766 |
| 54 | 0.29751 | 0.00778305 | 0.02922565 |
| 90 | 0.401243 | 0.0555503 | 0.05287086 |
| 126 | 0.408604 | 0.0188045 | 0.04336611 |
| 162 | 0.51268 | 0.0208539 | 0.04112654 |
| 198 | 0.475037 | 0.0342359 | 0.03946967 |
| 234 | 0.427282 | 0.011808 | 0.03778716 |
| 270 | 0.338681 | 0.00956178 | 0.03073016 |
| 306 | 0.3178 | 0.00955971 | 0.03057145 |
| 342 | 0.322447 | 0.00919161 | 0.03579262 |
