Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

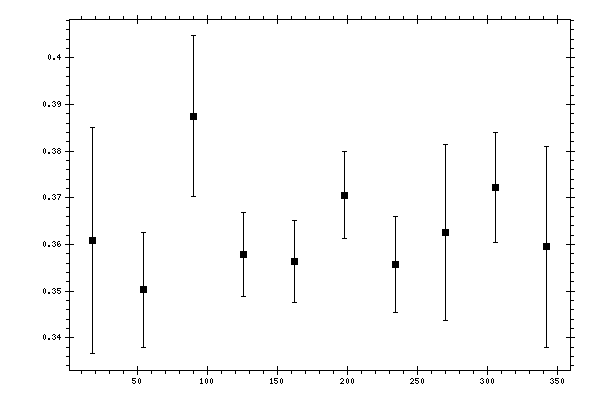

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.360851 | 0.0241223 | 0.05470991 |
| 54 | 0.35034 | 0.012303 | 0.03259871 |
| 90 | 0.387512 | 0.0171644 | 0.03421464 |
| 126 | 0.357919 | 0.00895404 | 0.02816775 |
| 162 | 0.356333 | 0.00876115 | 0.02894859 |
| 198 | 0.370592 | 0.00932247 | 0.03264816 |
| 234 | 0.355662 | 0.0102618 | 0.02790843 |
| 270 | 0.362519 | 0.0189049 | 0.03050478 |
| 306 | 0.372201 | 0.0118075 | 0.03405461 |
| 342 | 0.359465 | 0.0214257 | 0.04651208 |
