Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

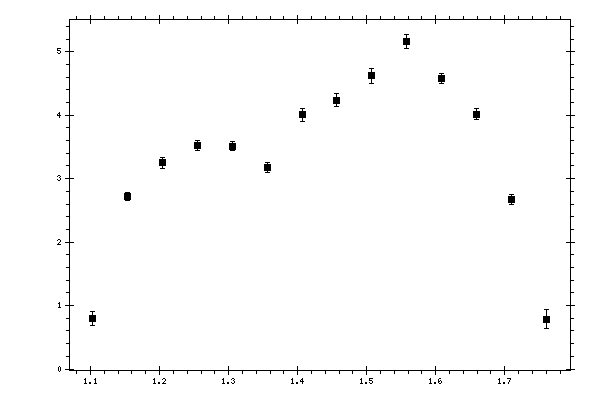

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10311 | 0.792143 | 0.1096 | 0.069175 |
| 1.15365 | 2.72001 | 0.0591464 | 0.2293157 |
| 1.2042 | 3.24711 | 0.0824975 | 0.24354331 |
| 1.25474 | 3.51692 | 0.0792698 | 0.26334004 |
| 1.30528 | 3.51381 | 0.0764772 | 0.26706981 |
| 1.35582 | 3.17986 | 0.0803928 | 0.24202381 |
| 1.40636 | 4.01084 | 0.102774 | 0.29520794 |
| 1.45691 | 4.23931 | 0.099966 | 0.31185482 |
| 1.50745 | 4.6212 | 0.114945 | 0.36968823 |
| 1.55799 | 5.16049 | 0.108773 | 0.40773386 |
| 1.60853 | 4.58388 | 0.0792455 | 0.45783706 |
| 1.65907 | 4.01578 | 0.0846654 | 0.42397599 |
| 1.70962 | 2.67556 | 0.0797226 | 0.33990515 |
| 1.76016 | 0.787399 | 0.146957 | 0.24500991 |
