Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|

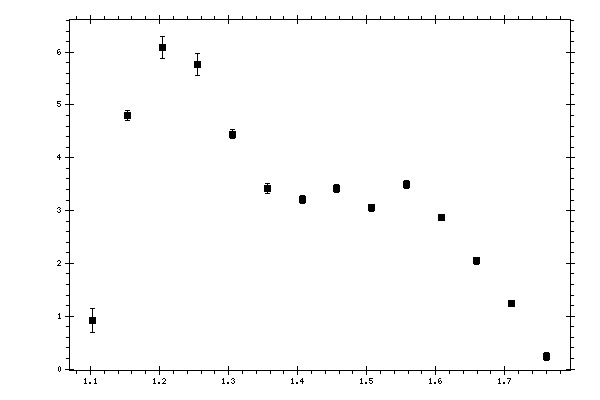

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10311 | 0.922039 | 0.222071 | 0.39514087 |
| 1.15365 | 4.79902 | 0.0973395 | 0.58718163 |
| 1.2042 | 6.09517 | 0.206589 | 0.56259865 |
| 1.25474 | 5.76603 | 0.212404 | 0.54201561 |
| 1.30528 | 4.4428 | 0.0862414 | 0.32941264 |
| 1.35582 | 3.41279 | 0.0983987 | 0.2568398 |
| 1.40636 | 3.21087 | 0.0734881 | 0.23278323 |
| 1.45691 | 3.41869 | 0.0712194 | 0.24777976 |
| 1.50745 | 3.04894 | 0.0741807 | 0.21742898 |
| 1.55799 | 3.49611 | 0.0692743 | 0.24927782 |
| 1.60853 | 2.86386 | 0.0568532 | 0.21458409 |
| 1.65907 | 2.05027 | 0.0671932 | 0.15375291 |
| 1.70962 | 1.23234 | 0.0305259 | 0.11073239 |
| 1.76016 | 0.237842 | 0.0694846 | 0.02222937 |
