Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

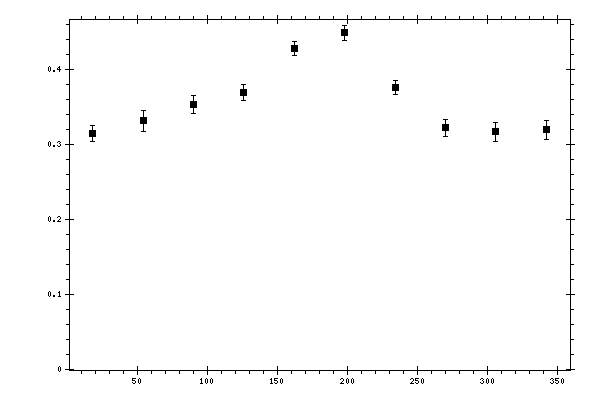

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.314239 | 0.0109513 | 0.03754977 |
| 54 | 0.331272 | 0.0137442 | 0.02975141 |
| 90 | 0.35343 | 0.0117594 | 0.02731061 |
| 126 | 0.369421 | 0.0108229 | 0.02768271 |
| 162 | 0.427882 | 0.00985886 | 0.03178433 |
| 198 | 0.448712 | 0.00957466 | 0.03286635 |
| 234 | 0.375652 | 0.00960238 | 0.02897351 |
| 270 | 0.321915 | 0.0117879 | 0.02595486 |
| 306 | 0.316632 | 0.0126626 | 0.03360303 |
| 342 | 0.319369 | 0.0125302 | 0.03778683 |
