Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

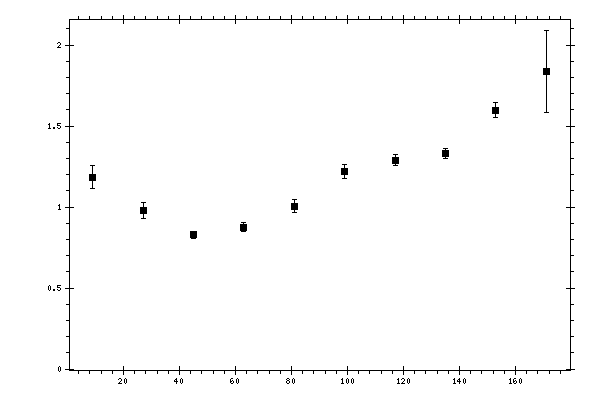

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 1.18425 | 0.0714398 | 0.17481396 |
| 27 | 0.978686 | 0.0468465 | 0.1107585 |
| 45 | 0.827769 | 0.0238517 | 0.08513351 |
| 63 | 0.876339 | 0.0276055 | 0.07616537 |
| 81 | 1.00617 | 0.039356 | 0.08537513 |
| 99 | 1.22046 | 0.042095 | 0.09787845 |
| 117 | 1.28878 | 0.0336501 | 0.10042077 |
| 135 | 1.33042 | 0.0311885 | 0.10478104 |
| 153 | 1.5991 | 0.046529 | 0.12570037 |
| 171 | 1.83686 | 0.253931 | 0.17805121 |
