Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|

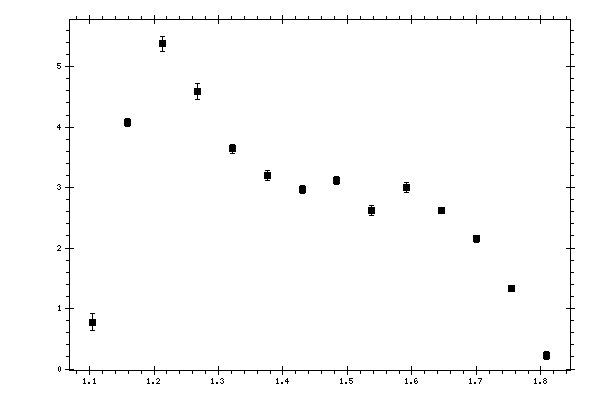

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.1049 | 0.776378 | 0.141706 | 0.38721668 |
| 1.15901 | 4.08045 | 0.0618116 | 0.52915212 |
| 1.21313 | 5.38042 | 0.12499 | 0.4701961 |
| 1.26724 | 4.58786 | 0.135356 | 0.42032768 |
| 1.32135 | 3.63946 | 0.0791302 | 0.2620642 |
| 1.37547 | 3.19653 | 0.0844348 | 0.23162367 |
| 1.42958 | 2.9769 | 0.0664683 | 0.22255548 |
| 1.48369 | 3.1176 | 0.0649511 | 0.23304074 |
| 1.53781 | 2.62453 | 0.0855363 | 0.19370391 |
| 1.59192 | 2.99683 | 0.080047 | 0.22116043 |
| 1.64603 | 2.62488 | 0.052588 | 0.18904503 |
| 1.70015 | 2.15463 | 0.0580436 | 0.15524459 |
| 1.75426 | 1.33028 | 0.0265209 | 0.10798728 |
| 1.80837 | 0.22335 | 0.0647243 | 0.01900923 |
