Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|

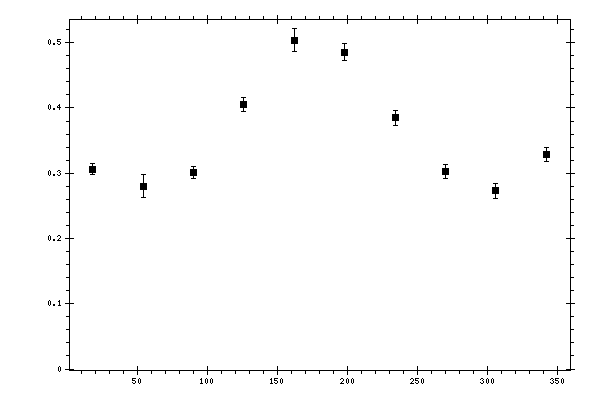

Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.306361 | 0.00783135 | 0.03063761 |
| 54 | 0.280107 | 0.017598 | 0.02776765 |
| 90 | 0.30159 | 0.00935163 | 0.02480533 |
| 126 | 0.404981 | 0.0111363 | 0.03120147 |
| 162 | 0.503802 | 0.017969 | 0.04116457 |
| 198 | 0.485452 | 0.0131107 | 0.03727156 |
| 234 | 0.384702 | 0.0113752 | 0.03019492 |
| 270 | 0.302634 | 0.0114712 | 0.02577276 |
| 306 | 0.272789 | 0.0113169 | 0.02505869 |
| 342 | 0.328735 | 0.0107126 | 0.03209335 |
