Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|

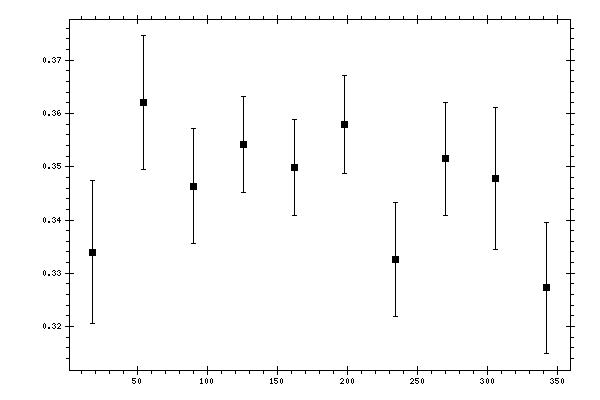

Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.333954 | 0.013411 | 0.03690027 |
| 54 | 0.362019 | 0.0125562 | 0.0293896 |
| 90 | 0.346322 | 0.0107684 | 0.0265313 |
| 126 | 0.354225 | 0.0090258 | 0.02642307 |
| 162 | 0.349866 | 0.00899008 | 0.02846835 |
| 198 | 0.357879 | 0.00917324 | 0.02811598 |
| 234 | 0.332514 | 0.0106981 | 0.0255565 |
| 270 | 0.351483 | 0.0106591 | 0.02594317 |
| 306 | 0.347744 | 0.0132987 | 0.0282869 |
| 342 | 0.327318 | 0.0123068 | 0.03609932 |
