Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

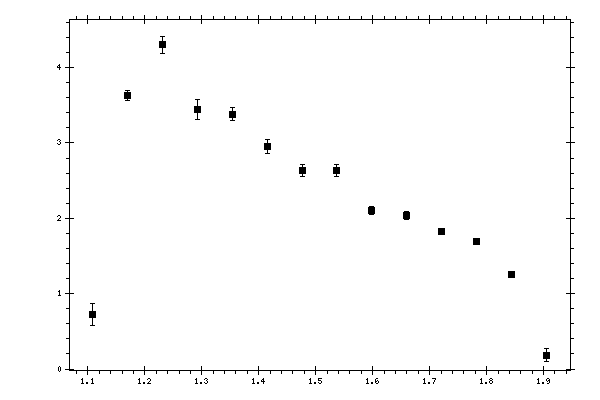

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10847 | 0.721661 | 0.147834 | 0.35165415 |
| 1.16973 | 3.63425 | 0.0658769 | 0.47835014 |
| 1.23098 | 4.30237 | 0.113814 | 0.34253569 |
| 1.29224 | 3.44371 | 0.127214 | 0.28753825 |
| 1.3535 | 3.38112 | 0.0836671 | 0.24677075 |
| 1.41475 | 2.95328 | 0.0895225 | 0.21594328 |
| 1.47601 | 2.63093 | 0.0798914 | 0.19081601 |
| 1.53726 | 2.63976 | 0.0797576 | 0.19145698 |
| 1.59852 | 2.09833 | 0.0519792 | 0.14976276 |
| 1.65978 | 2.04137 | 0.0526993 | 0.14570256 |
| 1.72103 | 1.82771 | 0.0433727 | 0.13970743 |
| 1.78229 | 1.69363 | 0.0450568 | 0.12946704 |
| 1.84355 | 1.25231 | 0.032425 | 0.10692191 |
| 1.9048 | 0.180522 | 0.0854024 | 0.01583473 |
