Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|

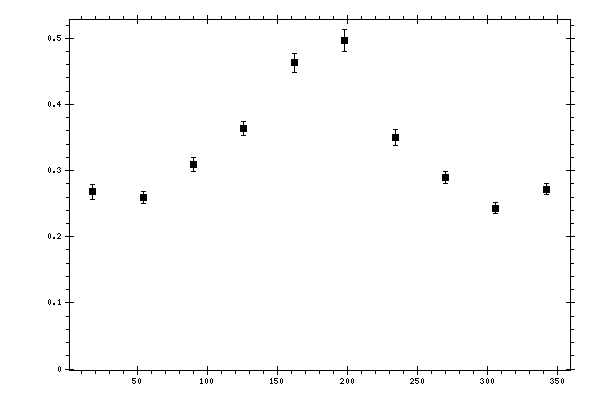

Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.267696 | 0.0116444 | 0.02653309 |
| 54 | 0.259304 | 0.00853877 | 0.02208842 |
| 90 | 0.30981 | 0.0106492 | 0.02307784 |
| 126 | 0.364227 | 0.0105497 | 0.02886466 |
| 162 | 0.46297 | 0.0142214 | 0.03648601 |
| 198 | 0.497085 | 0.0166508 | 0.03806709 |
| 234 | 0.350334 | 0.0118182 | 0.02686697 |
| 270 | 0.289256 | 0.00906532 | 0.02406969 |
| 306 | 0.243157 | 0.00842544 | 0.01966727 |
| 342 | 0.272034 | 0.00851709 | 0.02741761 |
