Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|

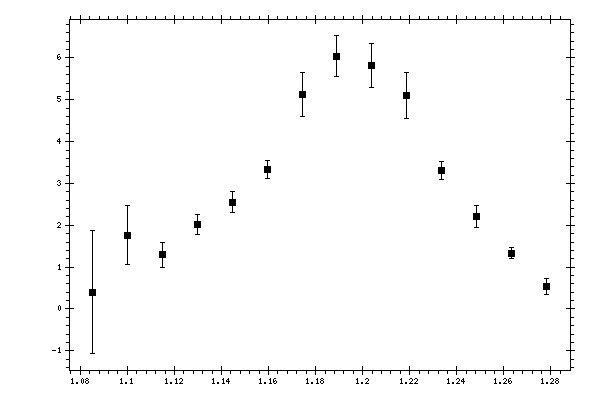

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08526 | 0.404675 | 1.46037 | 0.21595947 |
| 1.10008 | 1.76304 | 0.699656 | 0.7428961 |
| 1.11491 | 1.29627 | 0.300711 | 0.23980429 |
| 1.12974 | 2.02066 | 0.240852 | 0.28639229 |
| 1.14457 | 2.55447 | 0.244109 | 0.54657394 |
| 1.15939 | 3.34271 | 0.213395 | 0.69376023 |
| 1.17422 | 5.13035 | 0.523618 | 0.56383644 |
| 1.18905 | 6.04673 | 0.482312 | 0.64428743 |
| 1.20388 | 5.82605 | 0.520761 | 0.62094886 |
| 1.21871 | 5.09979 | 0.556608 | 0.55924299 |
| 1.23353 | 3.3141 | 0.216273 | 0.3323676 |
| 1.24836 | 2.21886 | 0.264314 | 0.25916872 |
| 1.26319 | 1.33768 | 0.121478 | 0.15894898 |
| 1.27802 | 0.545933 | 0.190153 | 0.08913293 |
