Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|

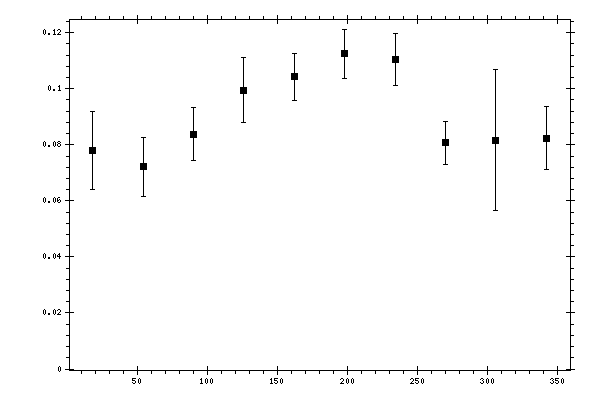

Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0779029 | 0.0140108 | 0.0166499 |
| 54 | 0.0720854 | 0.0104251 | 0.02048004 |
| 90 | 0.0837743 | 0.00938617 | 0.0084974 |
| 126 | 0.0995302 | 0.0117334 | 0.00854088 |
| 162 | 0.104201 | 0.00854234 | 0.00864533 |
| 198 | 0.112525 | 0.00876593 | 0.00954692 |
| 234 | 0.110496 | 0.00925779 | 0.00965752 |
| 270 | 0.0807349 | 0.00768377 | 0.00715745 |
| 306 | 0.0817002 | 0.0252641 | 0.01341047 |
| 342 | 0.0823587 | 0.0112533 | 0.01744464 |
