Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

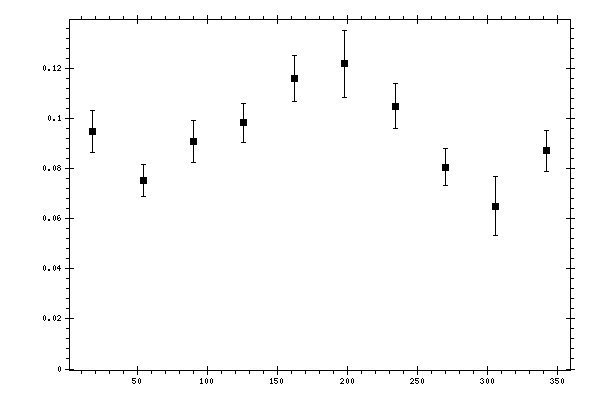

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0947907 | 0.00840394 | 0.01132917 |
| 54 | 0.0754792 | 0.00639154 | 0.01066419 |
| 90 | 0.090763 | 0.00842544 | 0.01168309 |
| 126 | 0.0984181 | 0.00775017 | 0.01438245 |
| 162 | 0.116152 | 0.0091691 | 0.02068012 |
| 198 | 0.121961 | 0.0133489 | 0.01574836 |
| 234 | 0.105048 | 0.00908956 | 0.01394627 |
| 270 | 0.0805846 | 0.00743144 | 0.01208178 |
| 306 | 0.0649426 | 0.0117839 | 0.01003799 |
| 342 | 0.0871195 | 0.00803738 | 0.01161785 |
