Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

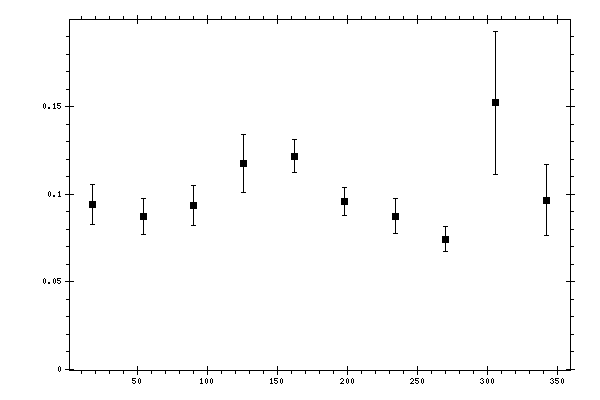

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0938899 | 0.0113529 | 0.03280148 |
| 54 | 0.0872109 | 0.0102084 | 0.01516027 |
| 90 | 0.0933877 | 0.0116115 | 0.0091225 |
| 126 | 0.11739 | 0.0164655 | 0.01388517 |
| 162 | 0.121578 | 0.00954321 | 0.01059927 |
| 198 | 0.095775 | 0.00804995 | 0.0079157 |
| 234 | 0.087424 | 0.0102607 | 0.00748768 |
| 270 | 0.0742247 | 0.00733661 | 0.00792543 |
| 306 | 0.152074 | 0.0410882 | 0.02492535 |
| 342 | 0.0963988 | 0.0203445 | 0.02051773 |
