Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

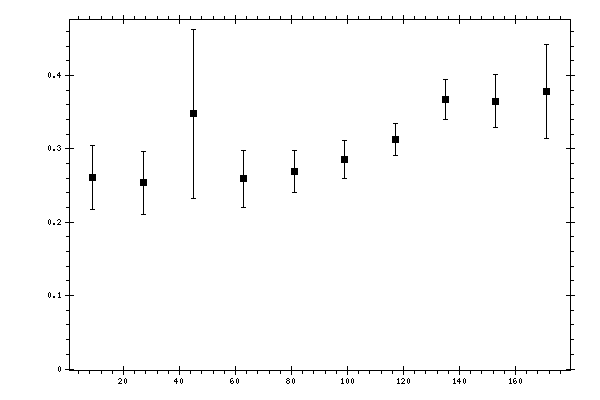

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.261306 | 0.0437172 | 0.10013949 |
| 27 | 0.253926 | 0.0426973 | 0.064716 |
| 45 | 0.34793 | 0.115183 | 0.06540484 |
| 63 | 0.259257 | 0.0390738 | 0.04323661 |
| 81 | 0.269324 | 0.029004 | 0.03122305 |
| 99 | 0.285893 | 0.0256986 | 0.02520203 |
| 117 | 0.312749 | 0.022033 | 0.06088087 |
| 135 | 0.367279 | 0.0268639 | 0.03126342 |
| 153 | 0.364826 | 0.0360954 | 0.03241708 |
| 171 | 0.378118 | 0.0640937 | 0.05049561 |
