Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|

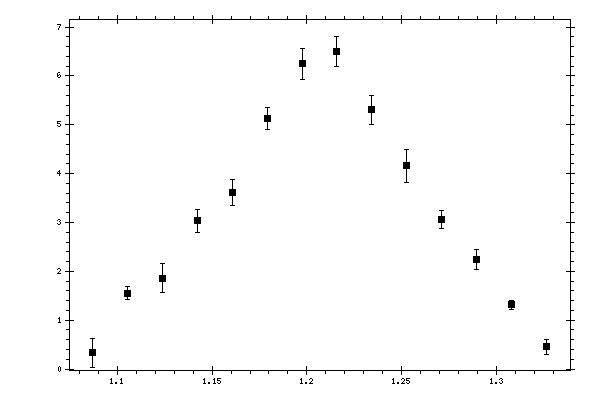

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08704 | 0.329739 | 0.299045 | 0.14527062 |
| 1.10544 | 1.55361 | 0.137769 | 0.21177399 |
| 1.12384 | 1.85442 | 0.297829 | 0.27810345 |
| 1.14224 | 3.03774 | 0.232699 | 0.34372263 |
| 1.16064 | 3.61123 | 0.262793 | 0.38168473 |
| 1.17904 | 5.13245 | 0.220434 | 0.47763269 |
| 1.19744 | 6.24959 | 0.311981 | 0.53881473 |
| 1.21584 | 6.50112 | 0.305887 | 0.55584502 |
| 1.23423 | 5.30385 | 0.296109 | 0.4420821 |
| 1.25263 | 4.15661 | 0.334486 | 0.36609311 |
| 1.27103 | 3.05506 | 0.181936 | 0.26850503 |
| 1.28943 | 2.2435 | 0.212307 | 0.21108458 |
| 1.30783 | 1.31296 | 0.0900048 | 0.10684509 |
| 1.32623 | 0.456478 | 0.152645 | 0.05230684 |
