Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|

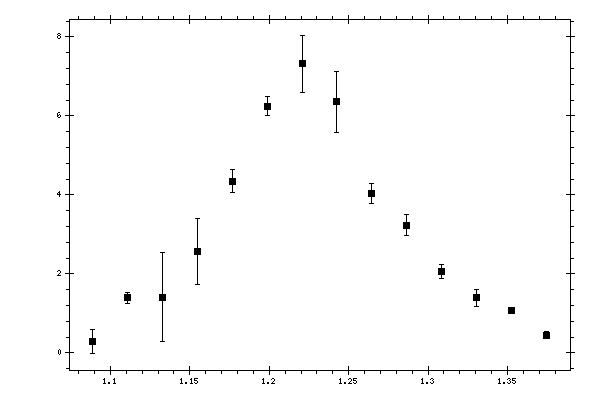

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08883 | 0.29527 | 0.30308 | 0.11547975 |
| 1.1108 | 1.38841 | 0.139768 | 0.26936591 |
| 1.13277 | 1.40181 | 1.12733 | 0.53165486 |
| 1.15474 | 2.55805 | 0.834531 | 0.91690776 |
| 1.17671 | 4.34636 | 0.282436 | 0.44421512 |
| 1.19868 | 6.24159 | 0.235686 | 0.58230492 |
| 1.22065 | 7.31222 | 0.712144 | 0.59757499 |
| 1.24262 | 6.35427 | 0.76394 | 0.5271001 |
| 1.26459 | 4.03034 | 0.244111 | 0.41792767 |
| 1.28656 | 3.23457 | 0.27249 | 0.34141022 |
| 1.30853 | 2.05302 | 0.183878 | 0.19406922 |
| 1.3305 | 1.3901 | 0.223463 | 0.13716504 |
| 1.35247 | 1.06052 | 0.0588676 | 0.08973631 |
| 1.37444 | 0.451019 | 0.0902689 | 0.04263585 |
