Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

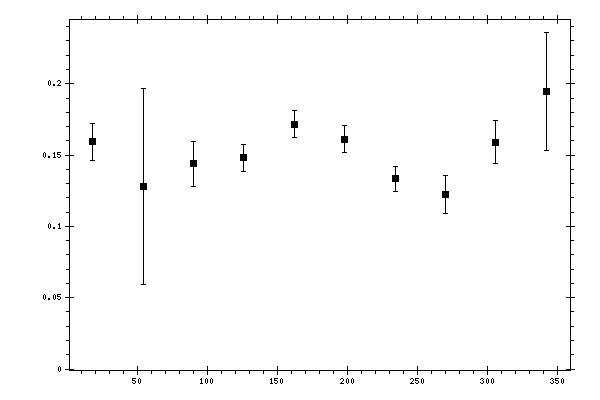

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.159195 | 0.013006 | 0.02687098 |
| 54 | 0.12766 | 0.0687223 | 0.03079698 |
| 90 | 0.143868 | 0.0156992 | 0.02750086 |
| 126 | 0.147979 | 0.00921296 | 0.01363267 |
| 162 | 0.17159 | 0.00936587 | 0.01495186 |
| 198 | 0.161223 | 0.00918068 | 0.01507013 |
| 234 | 0.133274 | 0.00851081 | 0.01128043 |
| 270 | 0.122101 | 0.0132457 | 0.01211505 |
| 306 | 0.15895 | 0.015015 | 0.01846039 |
| 342 | 0.194381 | 0.0414787 | 0.02980931 |
