Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

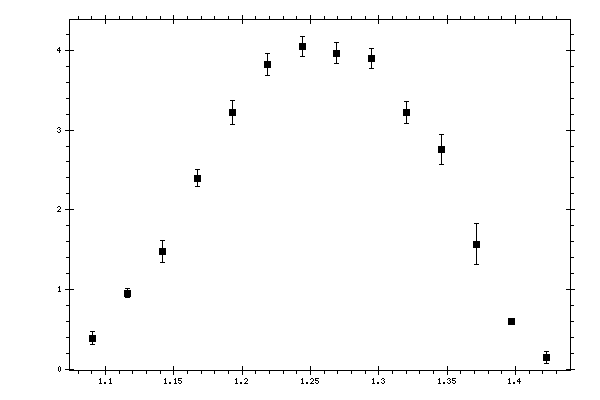

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09061 | 0.385662 | 0.0824986 | 0.03824978 |
| 1.11615 | 0.953332 | 0.0524721 | 0.08089163 |
| 1.1417 | 1.47418 | 0.136546 | 0.13185641 |
| 1.16724 | 2.39731 | 0.107076 | 0.19398801 |
| 1.19278 | 3.22133 | 0.147275 | 0.27966262 |
| 1.21832 | 3.82724 | 0.135115 | 0.32120632 |
| 1.24386 | 4.04822 | 0.129218 | 0.41341716 |
| 1.26941 | 3.96708 | 0.130533 | 0.40765381 |
| 1.29495 | 3.90053 | 0.127633 | 0.42779029 |
| 1.32049 | 3.22307 | 0.140408 | 0.38310676 |
| 1.34603 | 2.75749 | 0.19228 | 0.37076259 |
| 1.37157 | 1.56946 | 0.254869 | 0.26164739 |
| 1.39712 | 0.596024 | 0.0362033 | 0.13291848 |
| 1.42266 | 0.142972 | 0.0739188 | 0.0931826 |
