Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

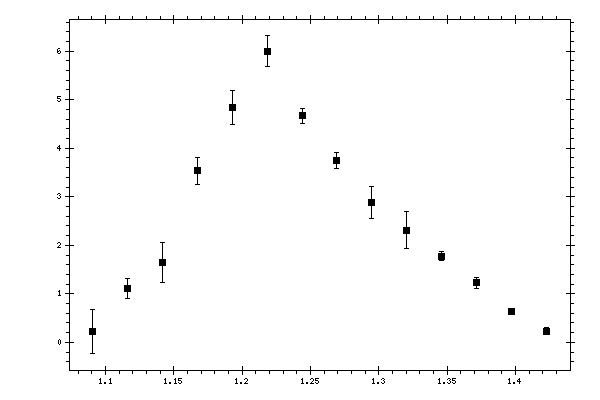

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09061 | 0.230095 | 0.451645 | 0.08873688 |
| 1.11615 | 1.10503 | 0.206093 | 0.24716918 |
| 1.1417 | 1.65246 | 0.408494 | 0.27195098 |
| 1.16724 | 3.53178 | 0.279418 | 0.48230938 |
| 1.19278 | 4.8465 | 0.352392 | 0.4744346 |
| 1.21832 | 5.99849 | 0.316752 | 0.5676908 |
| 1.24386 | 4.67042 | 0.151002 | 0.37960302 |
| 1.26941 | 3.7456 | 0.168617 | 0.31103458 |
| 1.29495 | 2.88414 | 0.333282 | 0.33575866 |
| 1.32049 | 2.31445 | 0.372045 | 0.2716785 |
| 1.34603 | 1.77387 | 0.0967882 | 0.15188375 |
| 1.37157 | 1.22468 | 0.116486 | 0.10721268 |
| 1.39712 | 0.639893 | 0.0410008 | 0.06009486 |
| 1.42266 | 0.231032 | 0.0682354 | 0.02413593 |
