Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

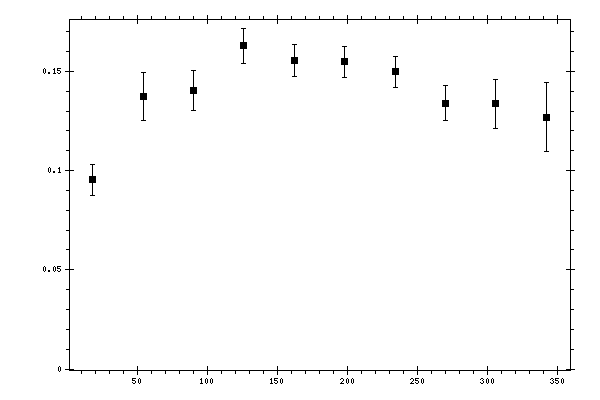

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0953885 | 0.00784003 | 0.03223801 |
| 54 | 0.137338 | 0.0120662 | 0.0156946 |
| 90 | 0.140481 | 0.0100627 | 0.01406805 |
| 126 | 0.162939 | 0.0087611 | 0.01344366 |
| 162 | 0.155563 | 0.00807719 | 0.01298054 |
| 198 | 0.154799 | 0.00777613 | 0.01259474 |
| 234 | 0.149873 | 0.00776788 | 0.01307177 |
| 270 | 0.133967 | 0.00868525 | 0.01180666 |
| 306 | 0.133633 | 0.0122466 | 0.01249362 |
| 342 | 0.126899 | 0.0173929 | 0.02106077 |
