Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

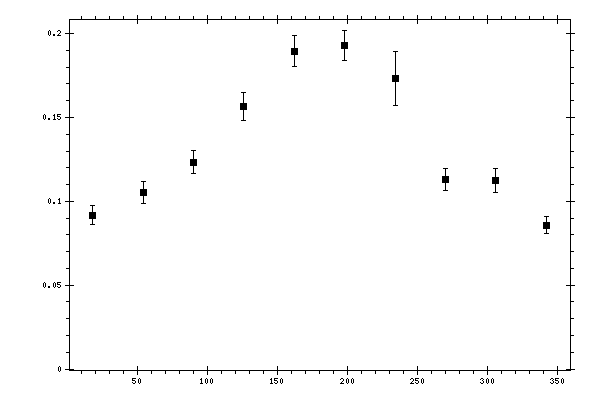

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0918327 | 0.00576944 | 0.00990087 |
| 54 | 0.105146 | 0.0064263 | 0.01085256 |
| 90 | 0.123444 | 0.0071131 | 0.01258382 |
| 126 | 0.156666 | 0.00832687 | 0.01789424 |
| 162 | 0.189517 | 0.00923026 | 0.0196378 |
| 198 | 0.193176 | 0.00892659 | 0.01922312 |
| 234 | 0.17304 | 0.0161104 | 0.01950405 |
| 270 | 0.113091 | 0.00676007 | 0.01198045 |
| 306 | 0.112262 | 0.00718359 | 0.01195203 |
| 342 | 0.0858088 | 0.00516209 | 0.00997403 |
