Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

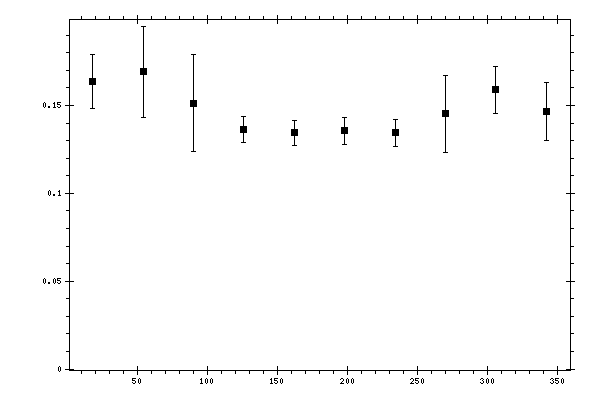

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.163733 | 0.0153205 | 0.02475443 |
| 54 | 0.169163 | 0.0258935 | 0.02501957 |
| 90 | 0.151326 | 0.027542 | 0.02440712 |
| 126 | 0.136266 | 0.00728385 | 0.01043484 |
| 162 | 0.134336 | 0.00725017 | 0.01056069 |
| 198 | 0.135642 | 0.00769196 | 0.01277825 |
| 234 | 0.134397 | 0.00763357 | 0.01103769 |
| 270 | 0.145174 | 0.0217517 | 0.01437344 |
| 306 | 0.158832 | 0.0135896 | 0.01928772 |
| 342 | 0.146578 | 0.0166265 | 0.02288119 |
