Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

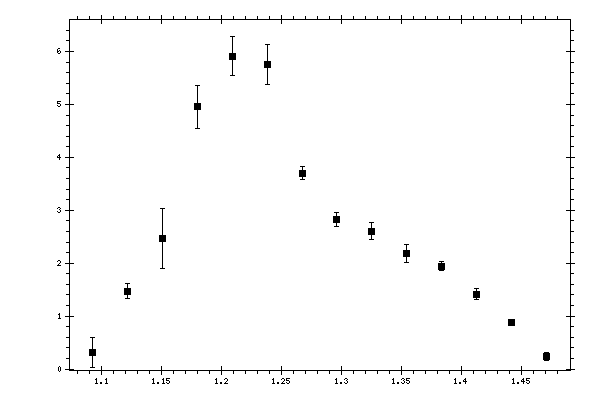

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.0924 | 0.31858 | 0.286234 | 0.11575747 |
| 1.12151 | 1.4741 | 0.133066 | 0.18939434 |
| 1.15063 | 2.47371 | 0.568971 | 0.31250852 |
| 1.17974 | 4.95366 | 0.40207 | 0.49443372 |
| 1.20885 | 5.91292 | 0.371361 | 0.49579165 |
| 1.23797 | 5.74827 | 0.376642 | 0.48463008 |
| 1.26708 | 3.70416 | 0.114899 | 0.28191836 |
| 1.29619 | 2.8325 | 0.131394 | 0.22225059 |
| 1.32531 | 2.60847 | 0.154055 | 0.20192554 |
| 1.35442 | 2.18484 | 0.168329 | 0.17059351 |
| 1.38353 | 1.94675 | 0.0873749 | 0.13852068 |
| 1.41265 | 1.4111 | 0.102627 | 0.10200544 |
| 1.44176 | 0.879221 | 0.0375784 | 0.0659255 |
| 1.47087 | 0.232213 | 0.0731215 | 0.02112516 |
