Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

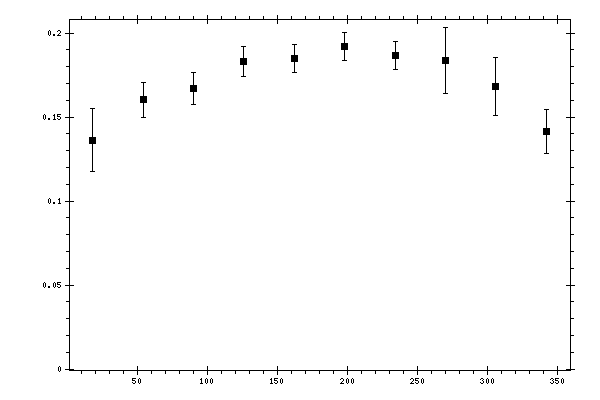

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.136182 | 0.0187573 | 0.02055825 |
| 54 | 0.160366 | 0.0104316 | 0.01375222 |
| 90 | 0.167255 | 0.00951216 | 0.01316608 |
| 126 | 0.183172 | 0.00886047 | 0.01350564 |
| 162 | 0.184726 | 0.00844802 | 0.01495128 |
| 198 | 0.192113 | 0.00831539 | 0.01485035 |
| 234 | 0.186695 | 0.00811094 | 0.01384635 |
| 270 | 0.183856 | 0.0196548 | 0.01990337 |
| 306 | 0.168319 | 0.0174638 | 0.03040661 |
| 342 | 0.141442 | 0.0128477 | 0.02139717 |
