Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

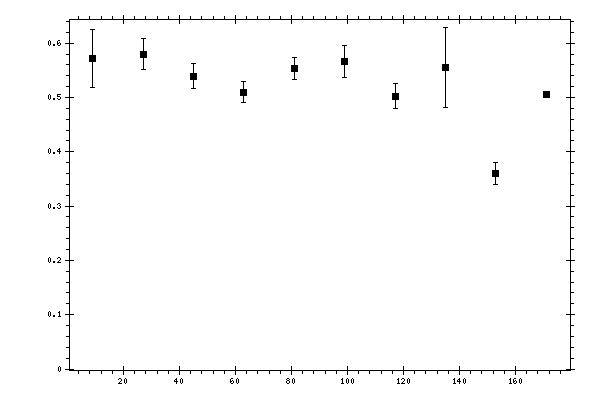

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.571885 | 0.0526458 | 0.0463425 |
| 27 | 0.579525 | 0.0287025 | 0.04432667 |
| 45 | 0.539211 | 0.0226629 | 0.04171713 |
| 63 | 0.510042 | 0.0200653 | 0.03899335 |
| 81 | 0.553156 | 0.0209057 | 0.0405599 |
| 99 | 0.565908 | 0.0289769 | 0.04213233 |
| 117 | 0.502726 | 0.0231747 | 0.04365762 |
| 135 | 0.554638 | 0.0736697 | 0.09534792 |
| 153 | 0.359875 | 0.0201911 | 0.14173148 |
| 171 | 0.506349 | 0.00120374 | 0.25672565 |
