Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

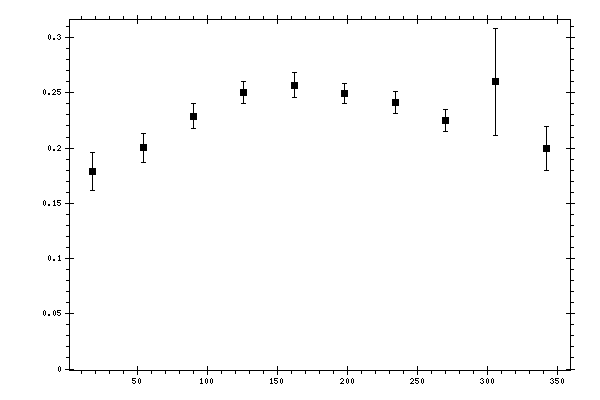

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.178662 | 0.0172144 | 0.03241979 |
| 54 | 0.200087 | 0.0131856 | 0.01992795 |
| 90 | 0.228925 | 0.0116317 | 0.01697216 |
| 126 | 0.249979 | 0.00989814 | 0.01844262 |
| 162 | 0.256954 | 0.0116245 | 0.02127567 |
| 198 | 0.249479 | 0.00909032 | 0.01947674 |
| 234 | 0.241011 | 0.00997933 | 0.01908925 |
| 270 | 0.225284 | 0.0100788 | 0.01786896 |
| 306 | 0.259895 | 0.0486837 | 0.04568236 |
| 342 | 0.199543 | 0.0202156 | 0.0288818 |
