Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

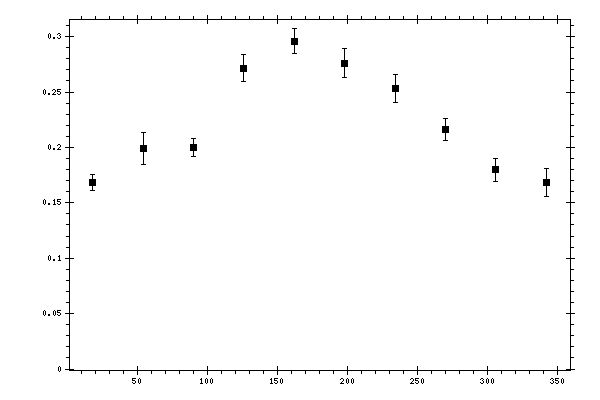

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.168299 | 0.00757846 | 0.01787193 |
| 54 | 0.199129 | 0.0147452 | 0.02581385 |
| 90 | 0.200003 | 0.00810157 | 0.0198873 |
| 126 | 0.271669 | 0.0124656 | 0.02430472 |
| 162 | 0.296013 | 0.0114614 | 0.02888214 |
| 198 | 0.276116 | 0.0129906 | 0.02677092 |
| 234 | 0.253424 | 0.012418 | 0.02330678 |
| 270 | 0.216417 | 0.00971924 | 0.02002946 |
| 306 | 0.17969 | 0.0101312 | 0.01901159 |
| 342 | 0.168235 | 0.0124876 | 0.01980883 |
