Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|

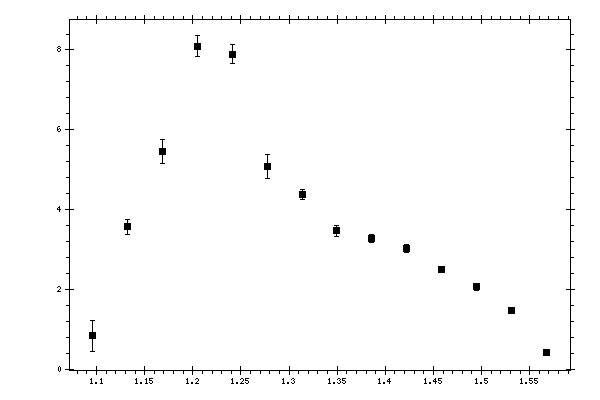

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09597 | 0.836084 | 0.385956 | 0.28525049 |
| 1.13223 | 3.57024 | 0.186773 | 0.44126505 |
| 1.16848 | 5.45562 | 0.308189 | 0.71532006 |
| 1.20474 | 8.09839 | 0.252953 | 0.95191157 |
| 1.241 | 7.89592 | 0.241458 | 0.67057454 |
| 1.27725 | 5.08465 | 0.300893 | 0.45900164 |
| 1.31351 | 4.38222 | 0.121462 | 0.3225059 |
| 1.34976 | 3.47067 | 0.136484 | 0.25730561 |
| 1.38602 | 3.2644 | 0.0981182 | 0.25801388 |
| 1.42228 | 3.02083 | 0.101997 | 0.2389719 |
| 1.45853 | 2.48974 | 0.08122 | 0.18441154 |
| 1.49479 | 2.06607 | 0.0891596 | 0.15350266 |
| 1.53105 | 1.45511 | 0.0424078 | 0.11018787 |
| 1.5673 | 0.414116 | 0.0794939 | 0.0327656 |
