Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|

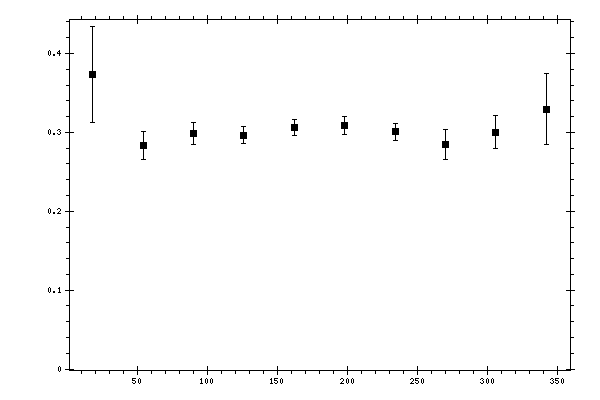

Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.37311 | 0.0609784 | 0.06206722 |
| 54 | 0.283864 | 0.0178065 | 0.03128153 |
| 90 | 0.298346 | 0.013616 | 0.02375462 |
| 126 | 0.296654 | 0.0108849 | 0.02259037 |
| 162 | 0.306251 | 0.0100947 | 0.02310198 |
| 198 | 0.308343 | 0.0115603 | 0.02433777 |
| 234 | 0.301007 | 0.010703 | 0.02268296 |
| 270 | 0.284993 | 0.019298 | 0.0208867 |
| 306 | 0.300373 | 0.0204403 | 0.03866213 |
| 342 | 0.329485 | 0.0449302 | 0.04428256 |
